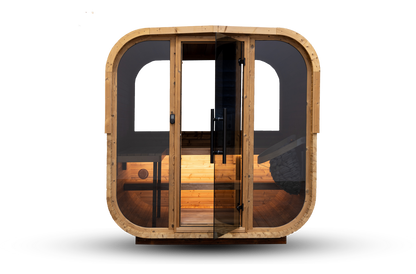

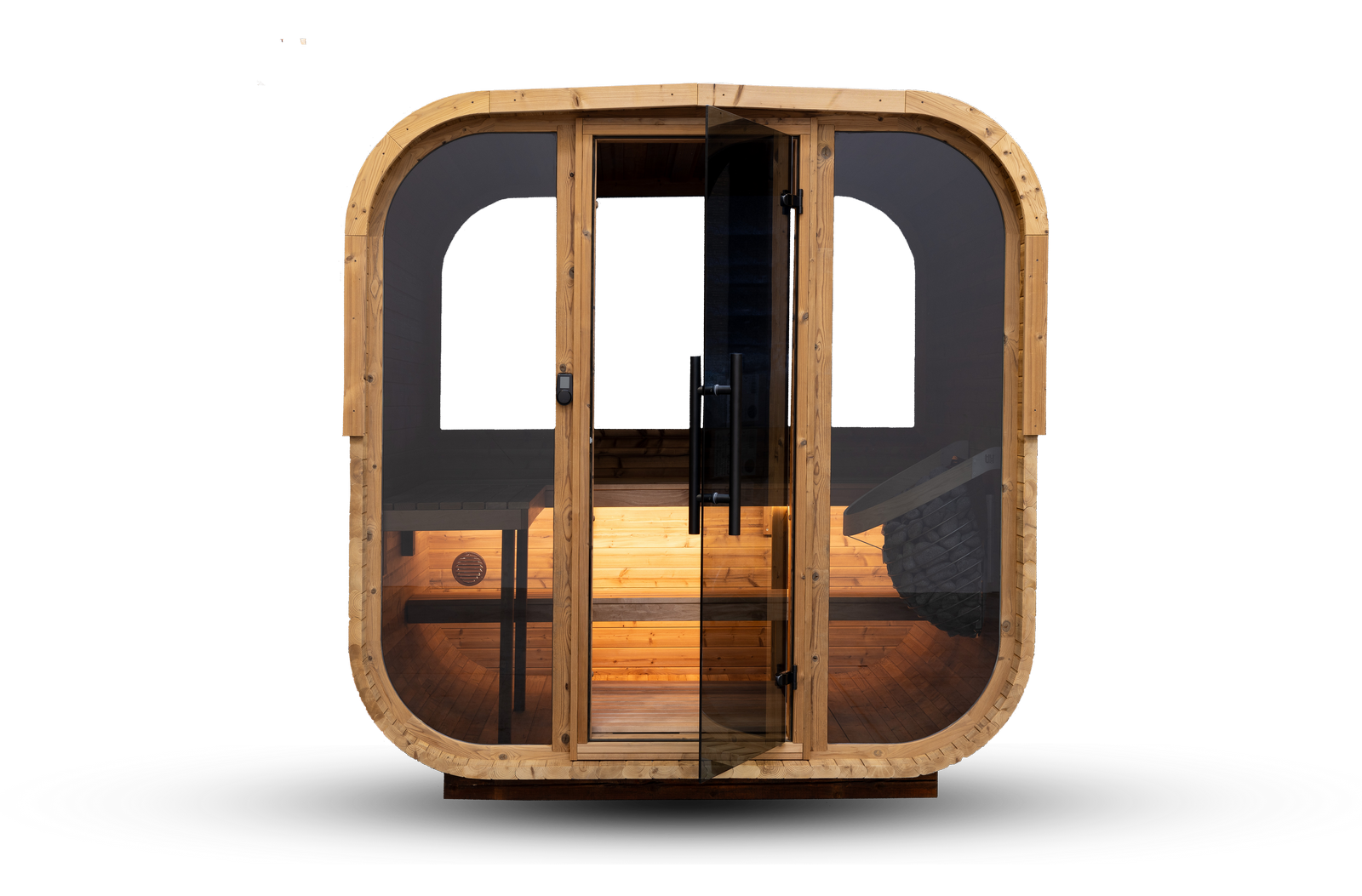

The HANSCRAFT Quadra X is a rounded-square cabin with a fully glazed front — a shape you will not have seen in a British garden, and the reason people stop and look at it. Built in 40mm thermo pine with thermo aspen benches and floor, it seats two to four and is made in Europe.
Our stock is specified with the ½ panorama window to the back wall, so light comes through the cabin rather than stopping at a solid timber wall — and you get a view out the back as well as the front. Your choice of heater is included: a wood-burning stove for the full ritual, or a 9kW electric heater for convenience.
A shape that earns its place

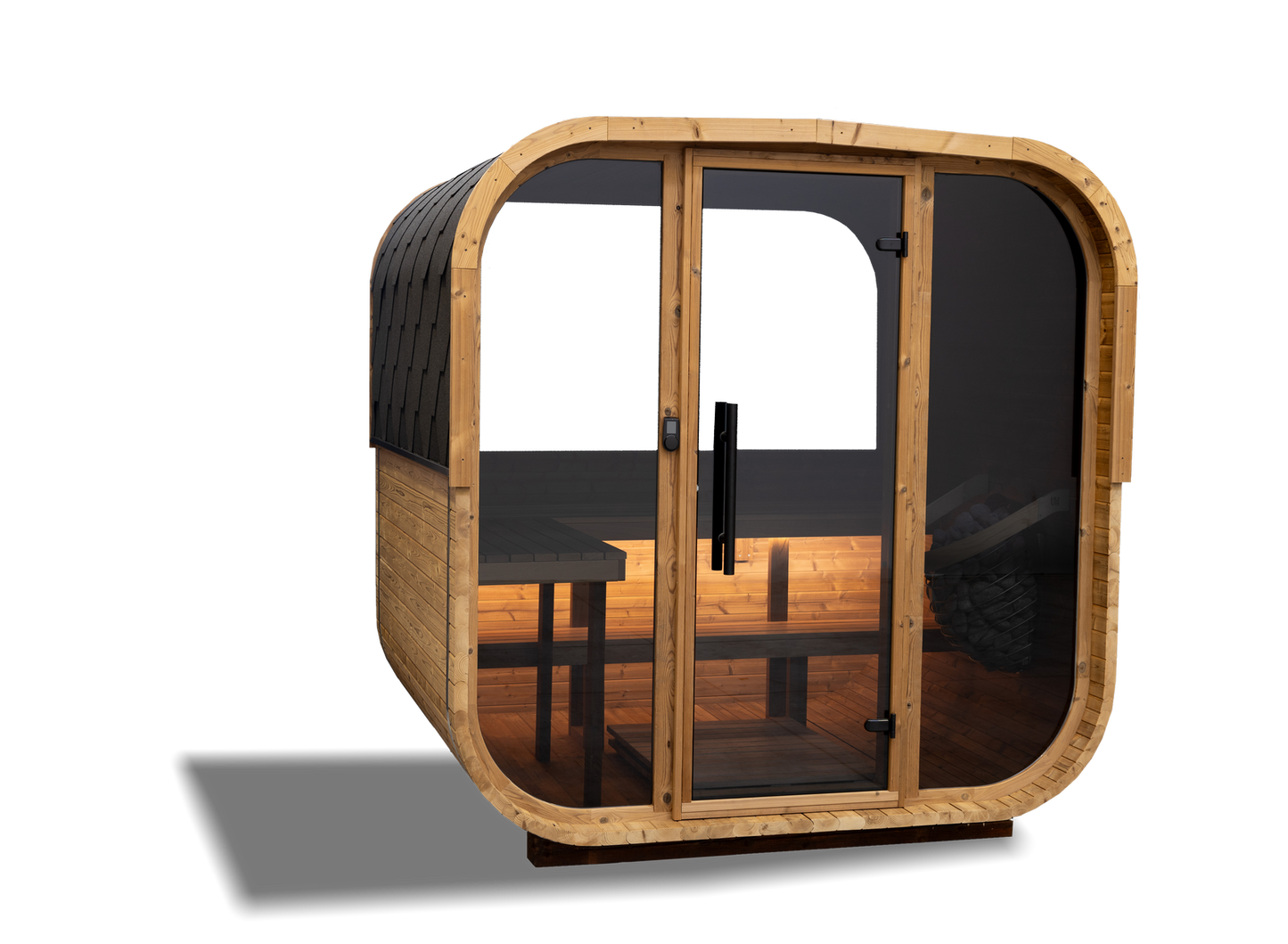

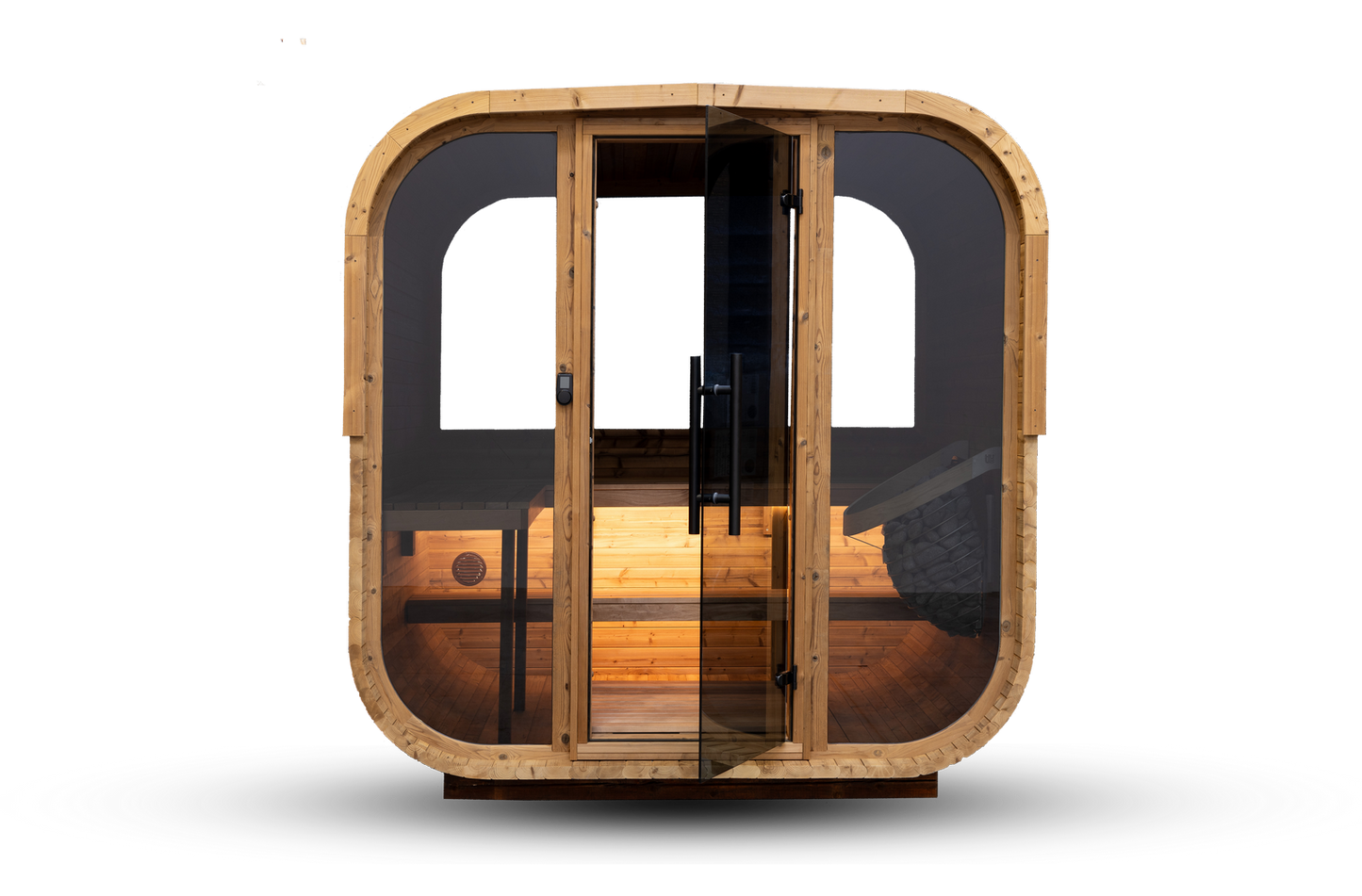

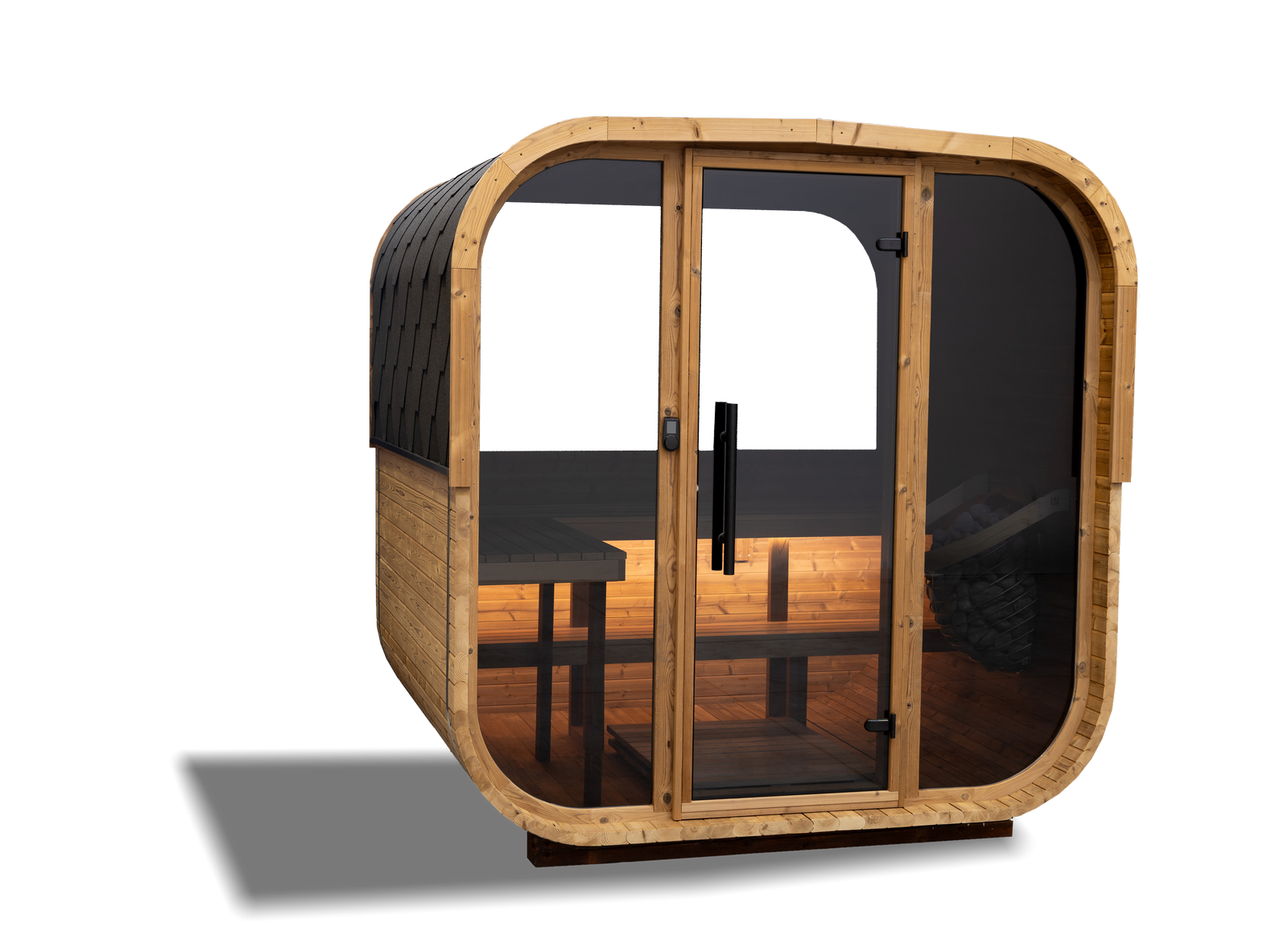

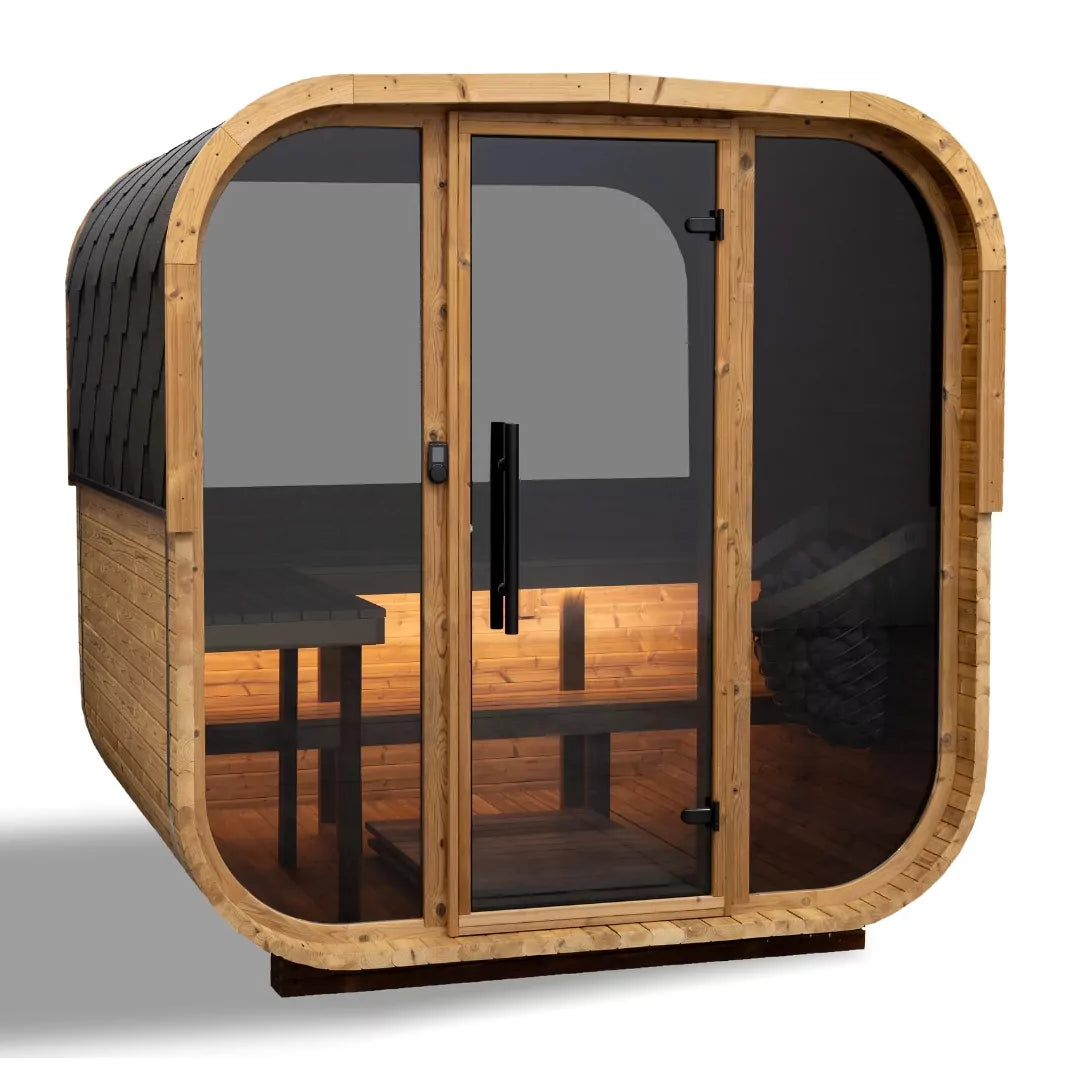

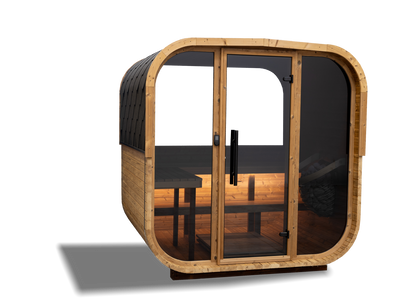

Most garden saunas are either a box or a barrel. The Quadra X is neither — a squared cabin with generously radiused corners, glazed edge to edge across the front. At 211.5cm wide and 188cm deep it has real presence without the length of a barrel, and it reads as a designed object rather than an outbuilding.

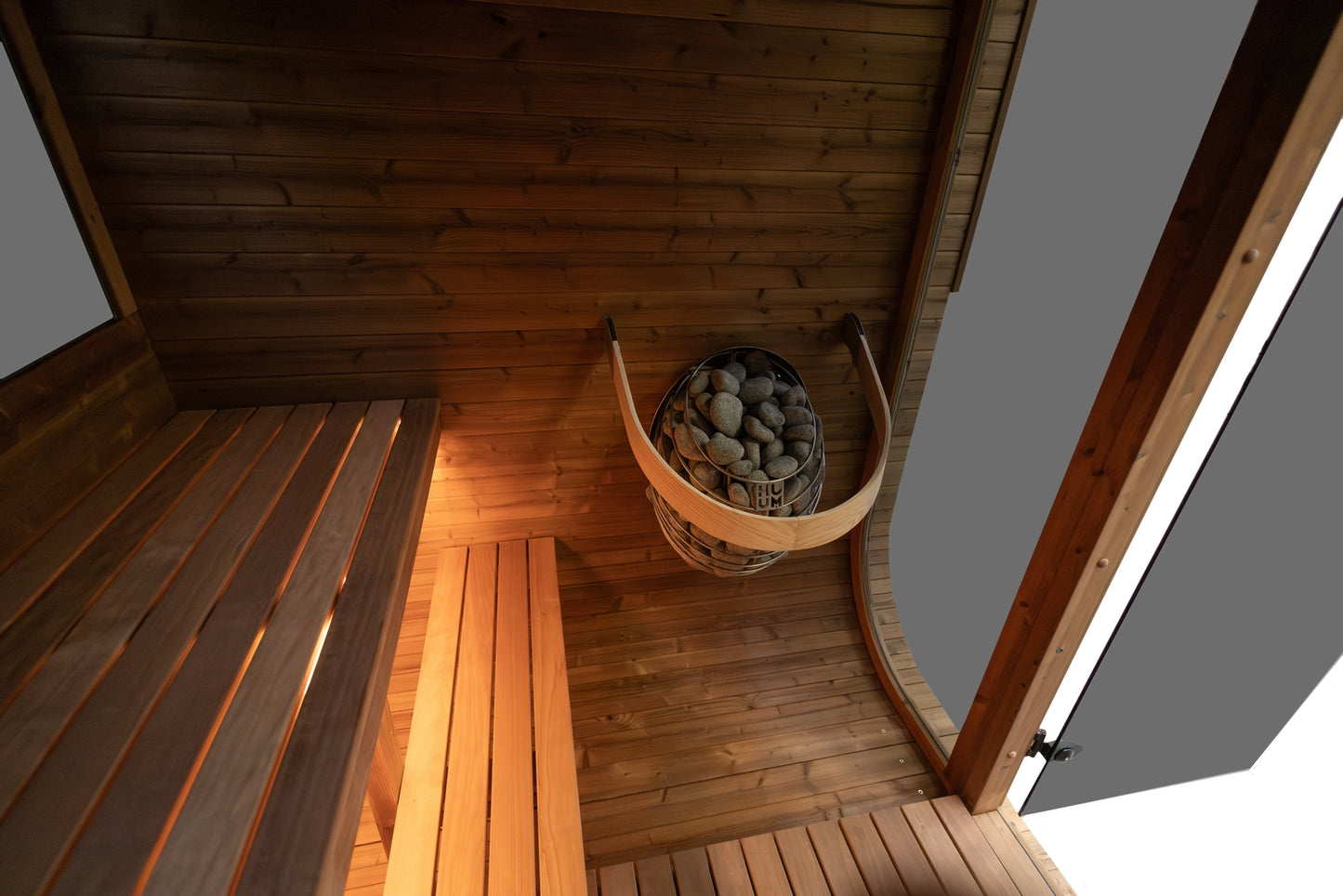

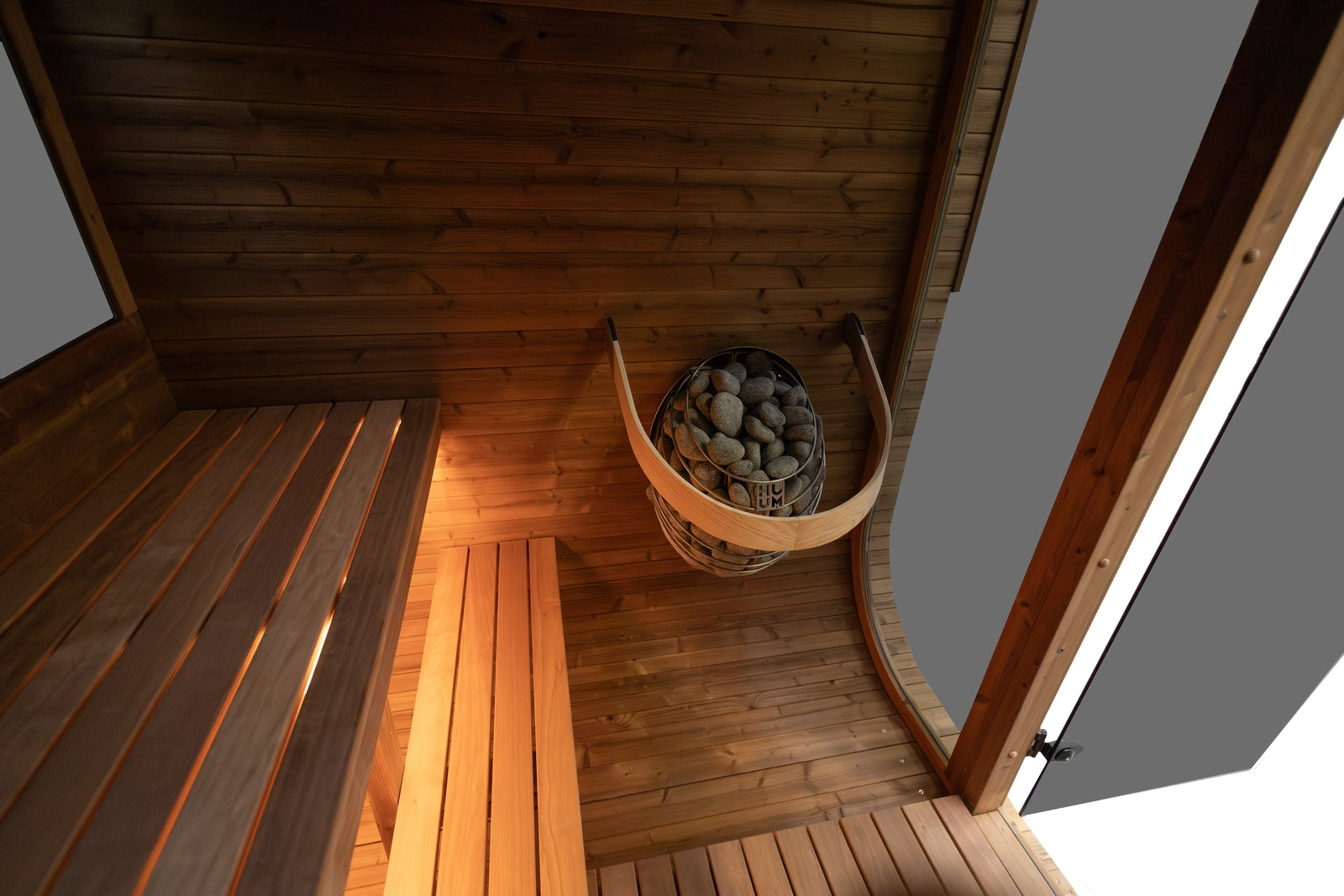

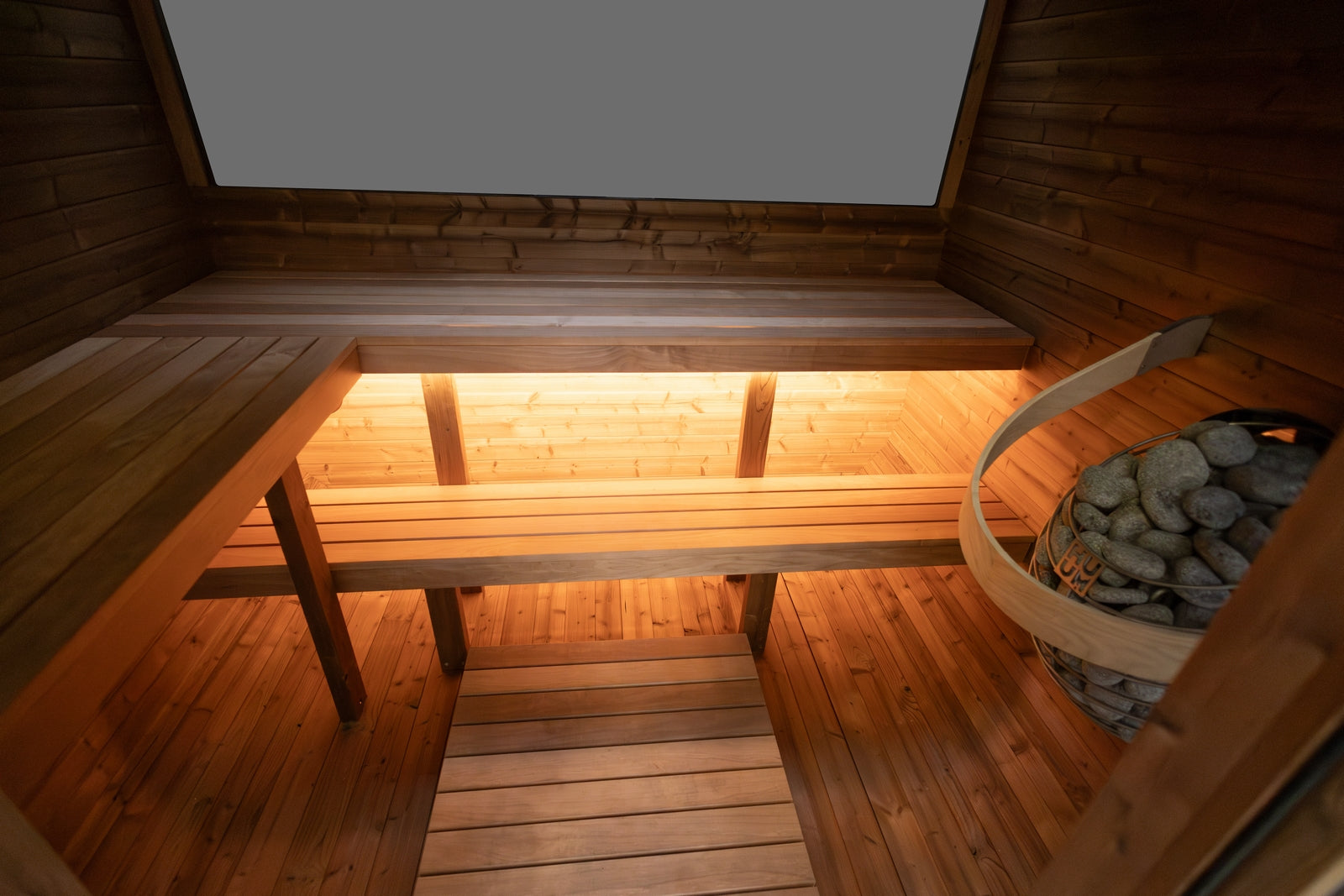

Inside, two benches with the top bench L-shaped means you can sit upright with company or stretch out alone, which is more useful in a cabin this size than a pair of parallel benches would be.

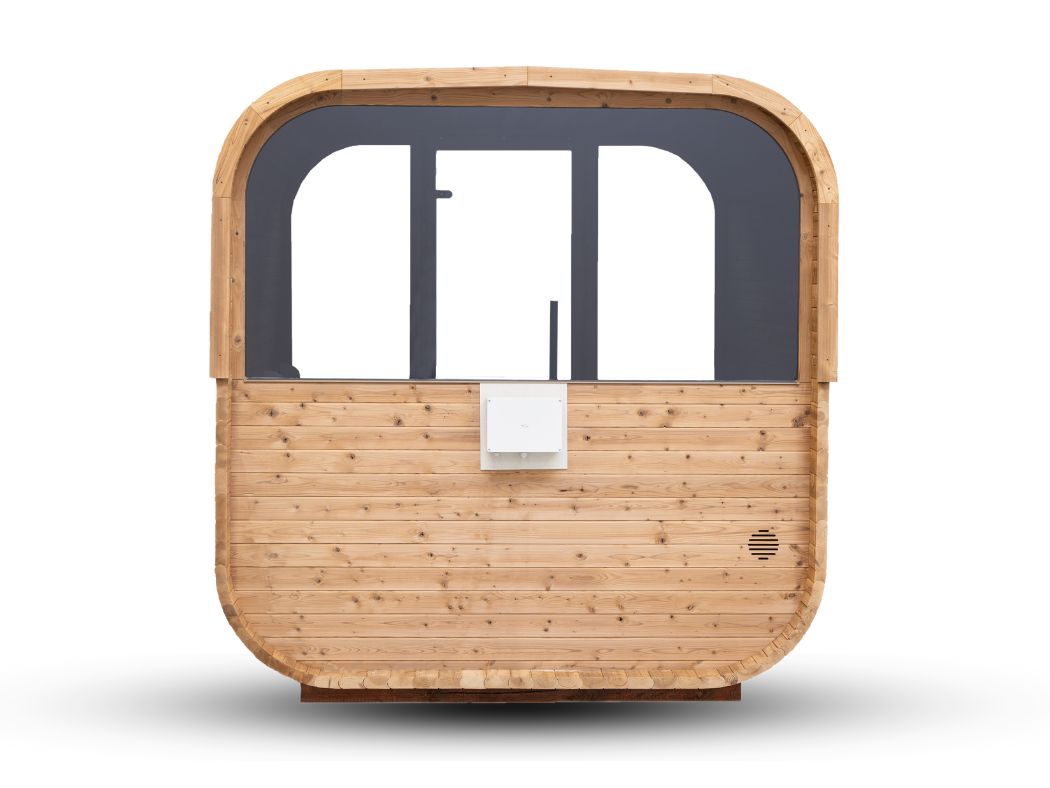

The ½ panorama window in the back wall is the detail that changes how the cabin feels to sit in. Rather than facing glass at one end and timber at the other, light passes right through — so a small cabin feels considerably less enclosed, and you get something to look at whichever way you are facing.

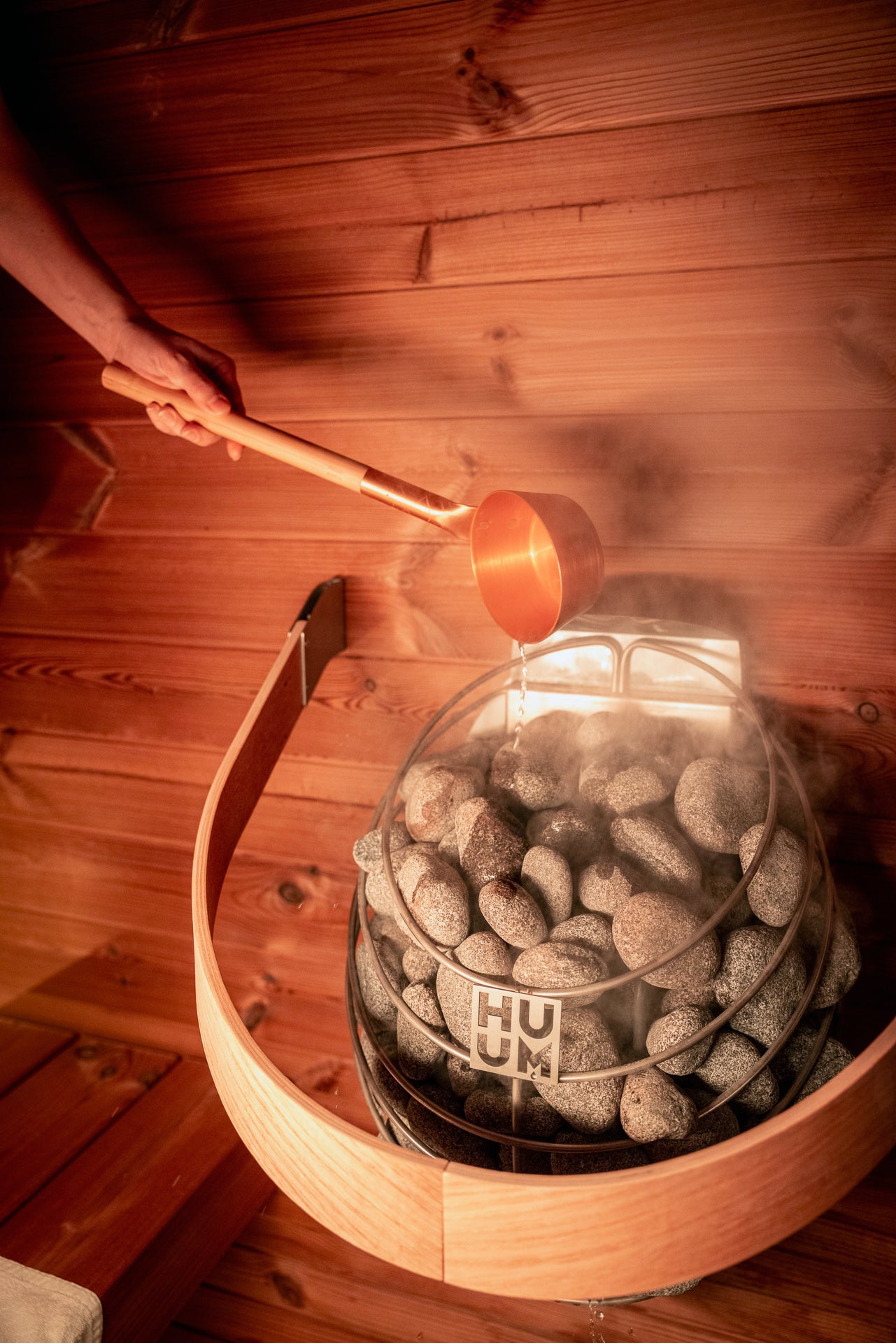

The traditional way. Crackle, scent and a softer, more enveloping heat that many people find impossible to replicate electrically. No electrical supply needed for the heat itself.
Press a button and walk away. No wood to store, no fire to lay, no ash to clear — the practical choice if you want to use it on a weeknight without planning ahead.
Not sure which suits you? Call us on 0330 133 6617 — it usually comes down to how spontaneously you want to use it, and whether running a flue is straightforward where the sauna is going.
Built in 40mm thermo timber
The cabin is 40mm thermo pine — thermally modified timber, treated with heat rather than chemicals so it absorbs less moisture and stays dimensionally stable through the temperature swings a sauna puts it through. At 40mm the walls have the mass to hold heat properly rather than bleeding it into a cold garden.

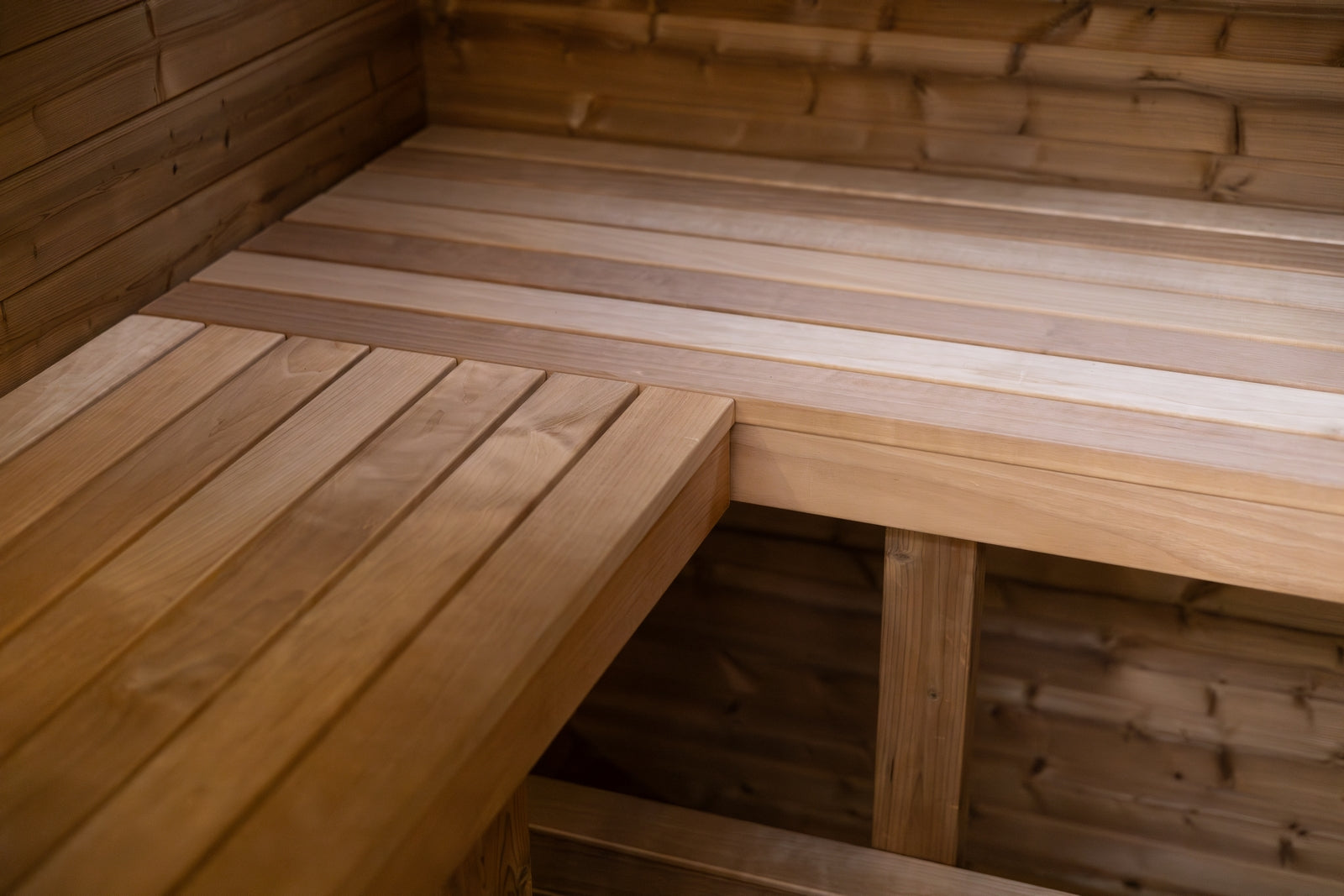

Benches and floor are thermo aspen, chosen because aspen has very low thermal conductivity — it stays comfortable to sit on and stand on even when the cabin is at full temperature. It is the detail that separates a sauna you can actually relax in from one you perch on gingerly.
Roof shingles, ventilation and an LED light strip are fitted as standard, and the cabin is made in Europe.
Specifications
| Brand | HANSCRAFT |
| Model | Quadra X |
| Type | Outdoor traditional sauna |
| Capacity | 2–4 people |
| External dimensions | 211.5cm W × 188cm D × 220cm H |
| Internal dimensions | 199cm W × 155cm D × 190cm H |
| Weight | Approx. 650kg |
| Wall thickness | 40mm |
| Sauna material | Thermo pine |
| Bench material | Thermo aspen |
| Floor material | Thermo aspen |
| Seating | 2 benches — top bench L-shaped |
| Glazing | Fully glazed front, 8mm |
| Back wall | ½ panorama window — included as standard on our stock |
| Heater | Included — choose wood-burning stove or 9kW electric |
| Lighting | LED light strip |
| Roof | Shingles |
| Ventilation | Fitted as standard |
| Origin | Made in Europe |
Included as standard
- ½ panorama window to the back wall
- Your choice of heater — wood-burning or 9kW electric
- Fully glazed front, 8mm
- LED light strip
- Roof shingles
- Ventilation
- Retractable belts and fasteners
Options
Ask us when you order and we will price these for you:
- Bluetooth audio system
- Sauna outdoor deck
- On-site assembly by our installation team
Installation
Base. At approximately 650kg the Quadra X needs a solid, level base able to take its weight — typically a concrete pad, paving slabs on a compacted sub-base, or a properly engineered deck, sized to the 211.5 × 188cm footprint with clearance around it for access and ventilation.
Electric heater. A 9kW sauna heater requires a dedicated supply installed by a qualified electrician — this is not a plug-in appliance. Your electrician should confirm the circuit, protection and cable specification for your property before installation.
Wood-burning stove. Needs a correctly installed flue and the right clearances to combustible materials. We will go through siting with you before you order so there are no surprises on the day.
Access. This is a large, heavy cabin. Please check the route from the road to the installation spot before ordering — gateway widths, steps, slopes and overhanging trees all matter. If in doubt, send us photos and we will look at it with you.
Assembly. On-site assembly by our installation team is available and quoted separately for your address.
Delivery
Please inspect all packaging on delivery and report any transit damage within 24 hours, with photos and your order number, to support@nuovoluxury.co.uk.
Questions before you buy? Call our team on 0330 133 6617 — we will talk you through heaters, access, assembly and the electrical supply.
