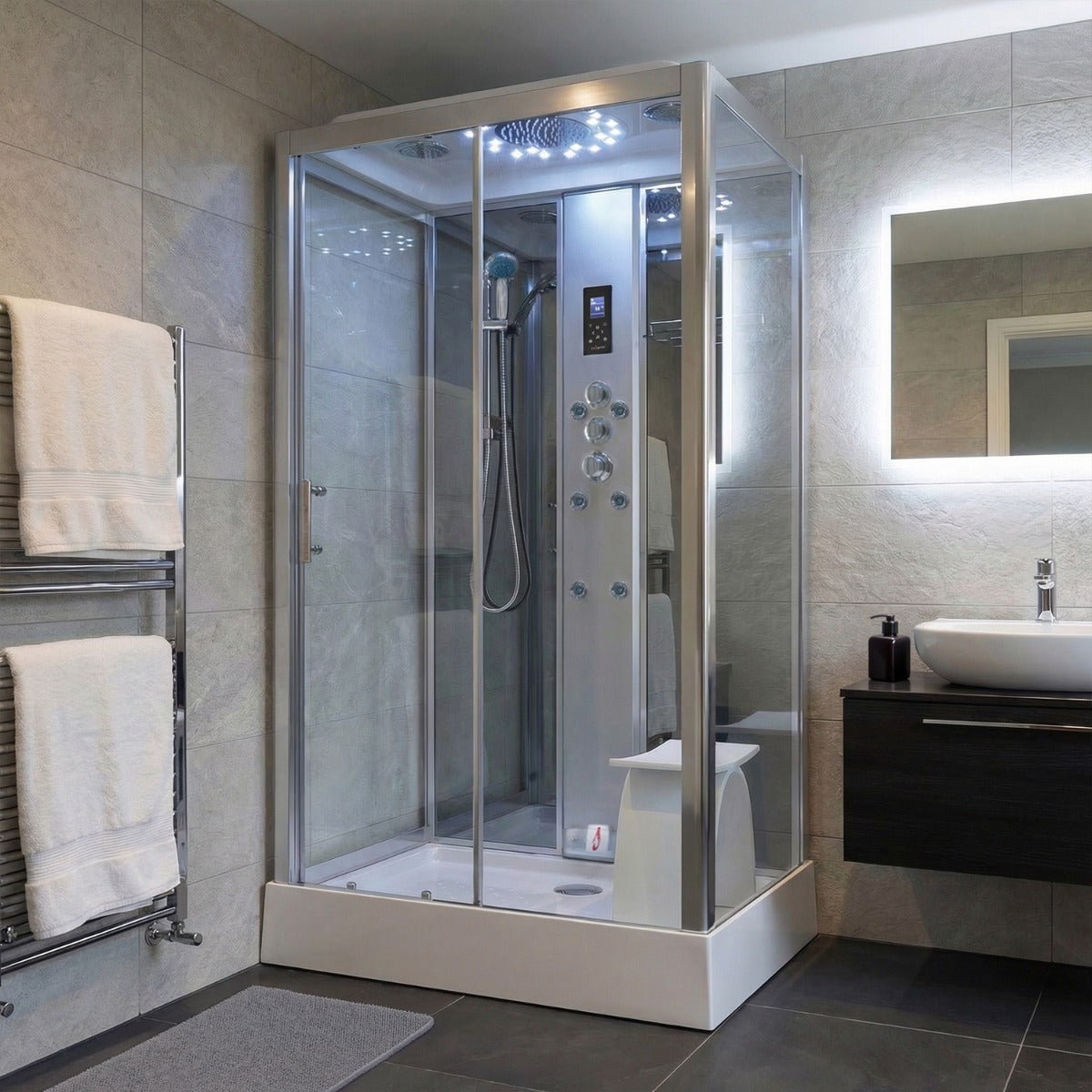

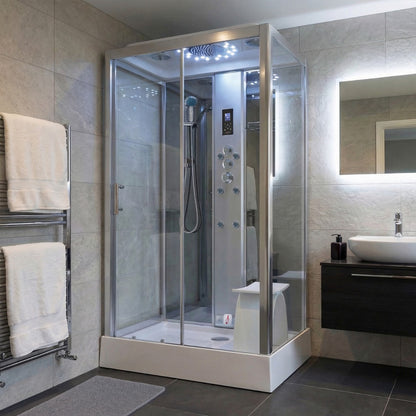

The Insignia Platinum Steam Shower — 4th Generation. A world-class spa experience, built into your bathroom.
The Platinum is the top of the Insignia range, and this latest generation refines it further. At its heart sits a fast-start 3kW steam generator with a triple-jet steam outlet, enveloping you in steam from three separate points for a deeper, faster, more immersive session. The integrated aromatherapy infusion system lets you scent that steam with therapeutic oils, while a full chromotherapy lighting array surrounds you in a seven-colour spectrum.
Inside, a beautifully sculpted luxury curved stone stool gives you somewhere to sit and simply breathe. Above, an LED-surrounded monsoon shower head sits flush with the roof and delivers a full-body cascade. Multi-stream chrome body jets can be individually adjusted, and a multijet hand shower on a riser rail completes the set.
Key Features
Fast-start 3kW steam generator with triple-jet steam outlet
Aromatherapy infusion system fitted as standard

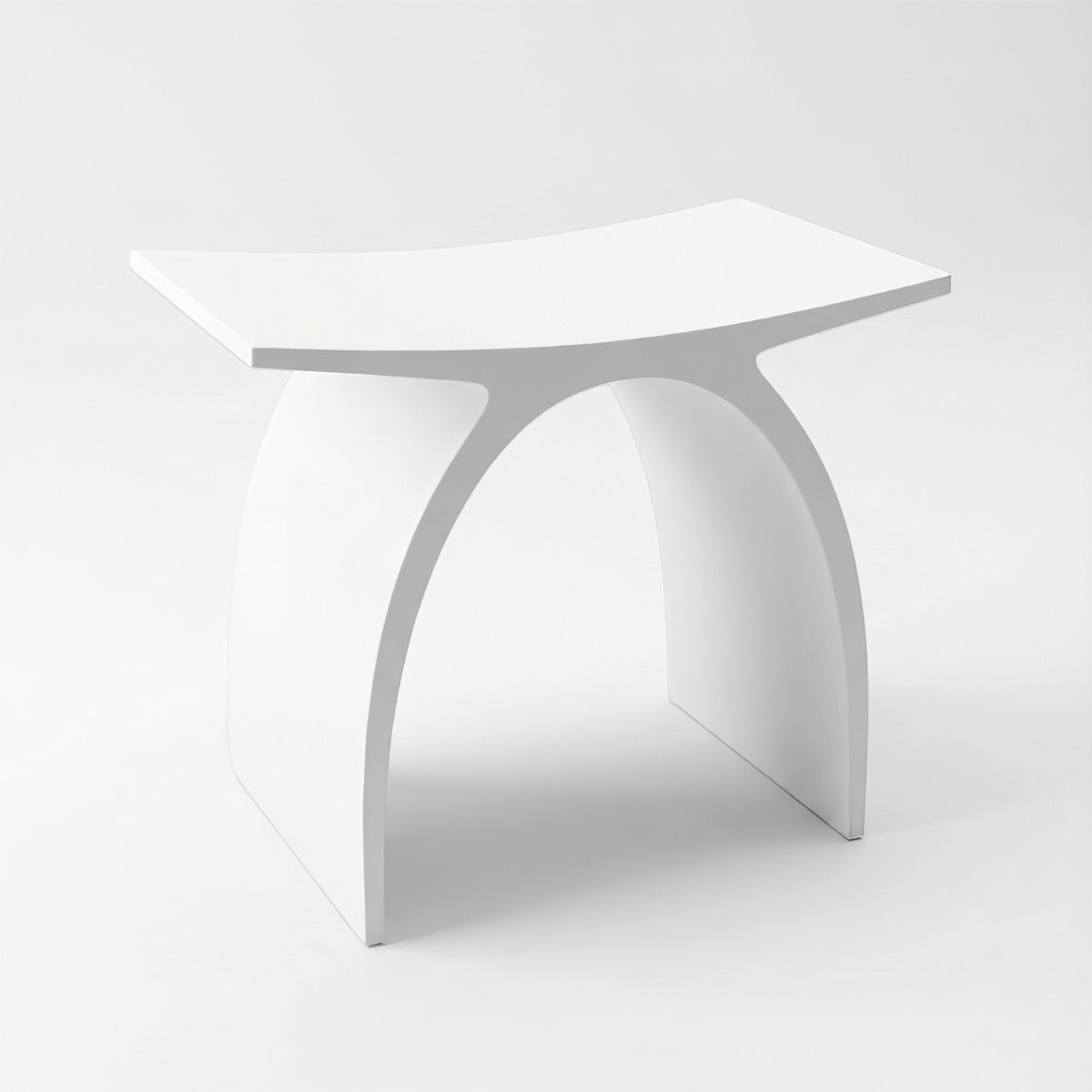

Luxury curved stone-finished stool

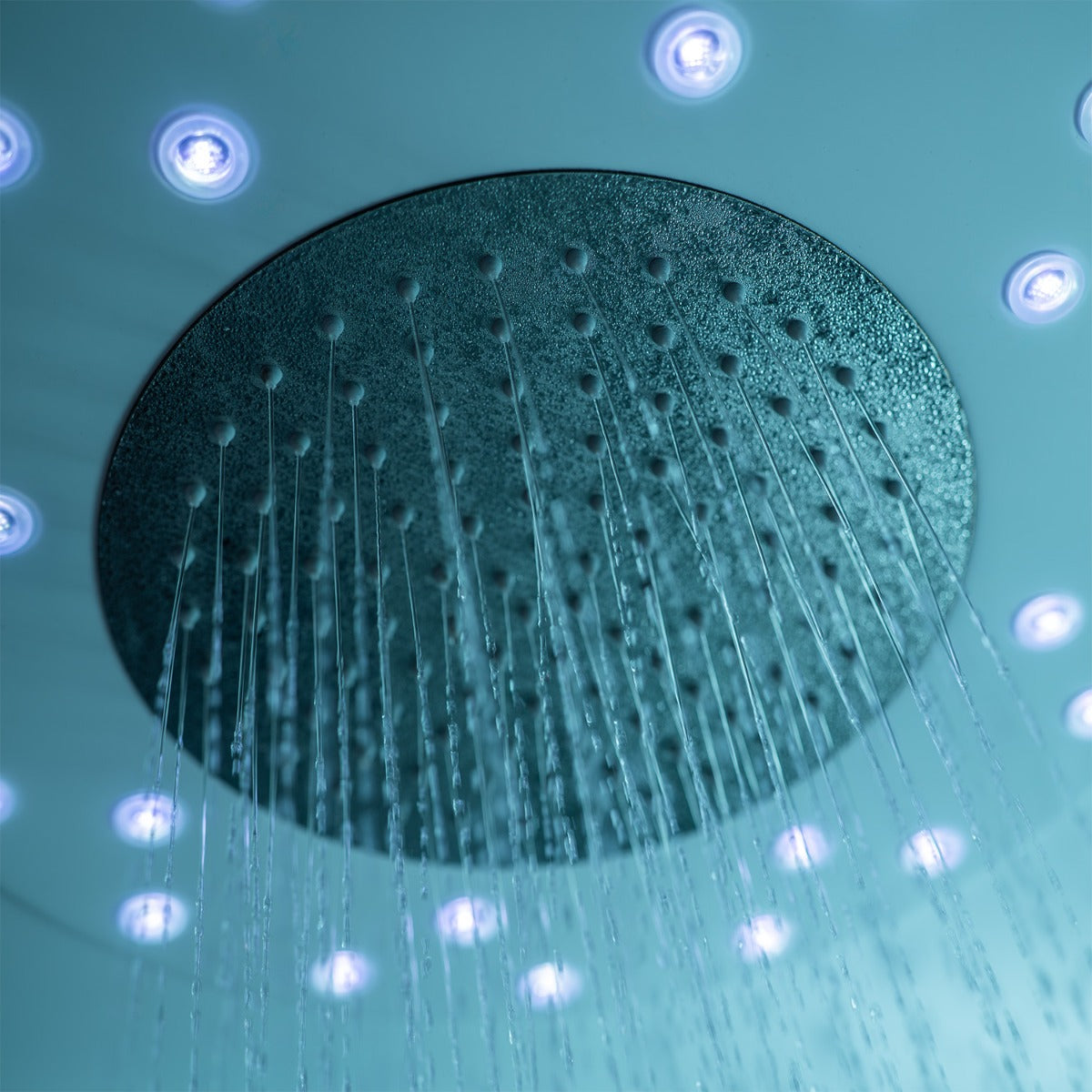

LED-surrounded monsoon overhead shower, flush-fitted to the roof

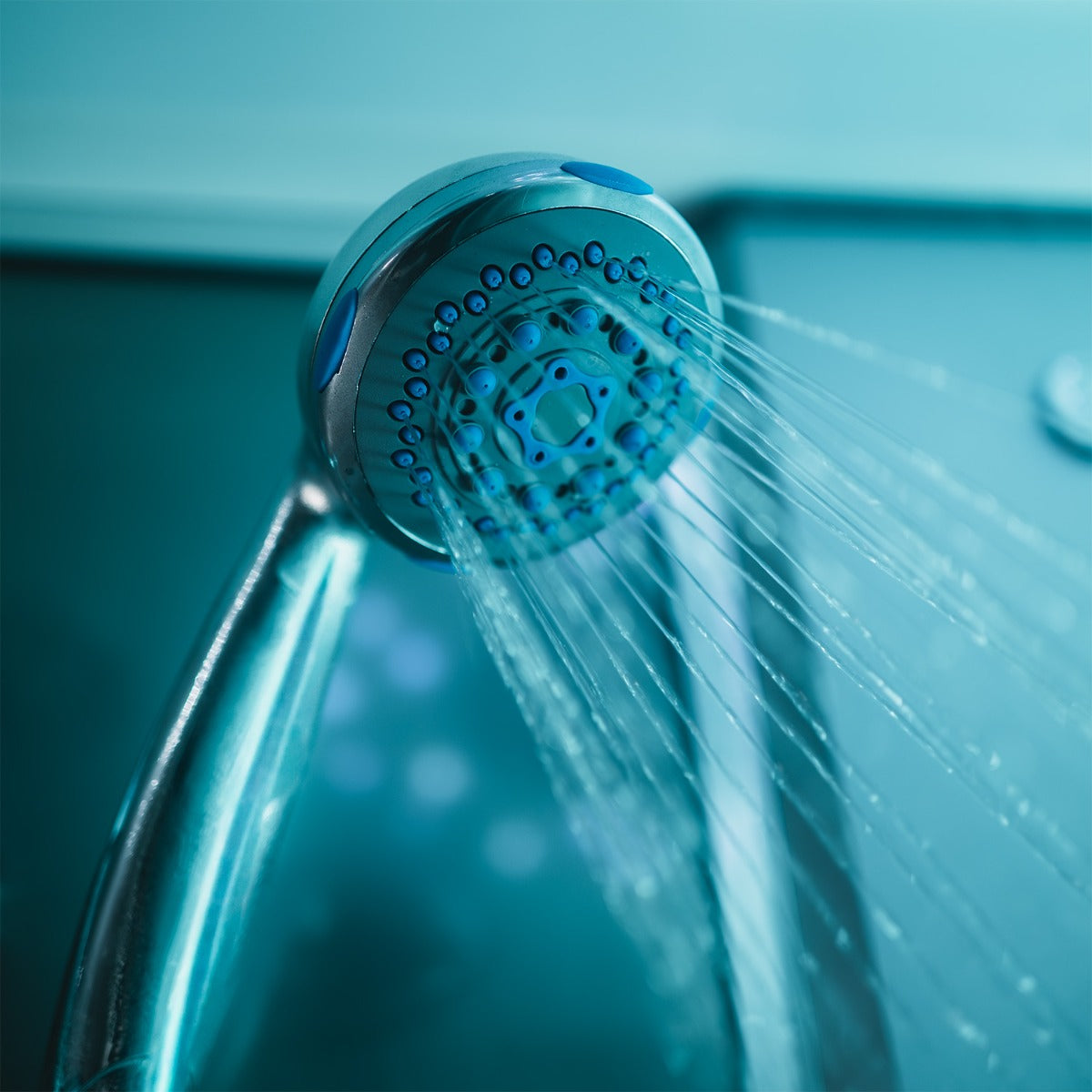

Multijet hand shower on riser rail with height adjustment

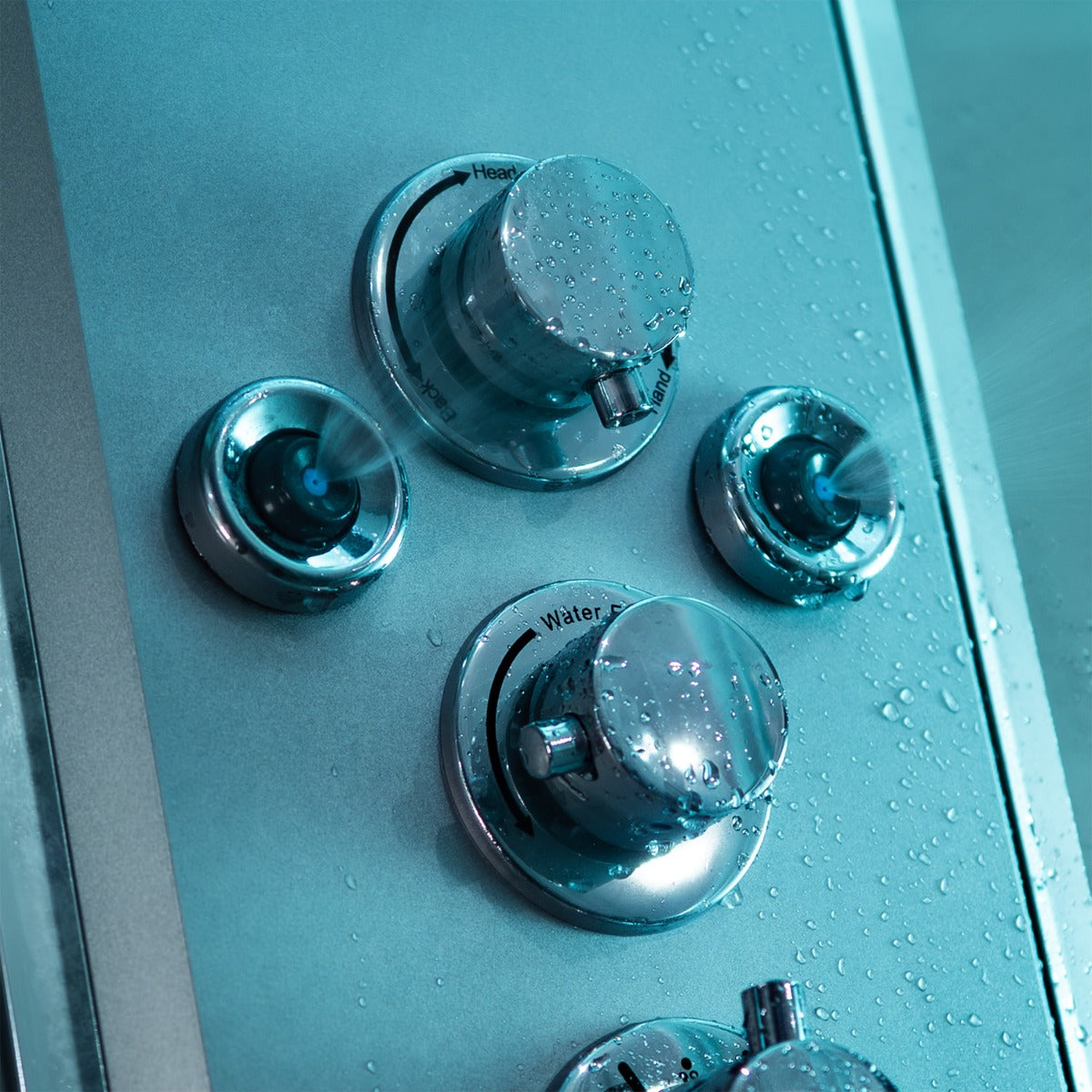

6 individually adjustable multi-stream chrome body jets

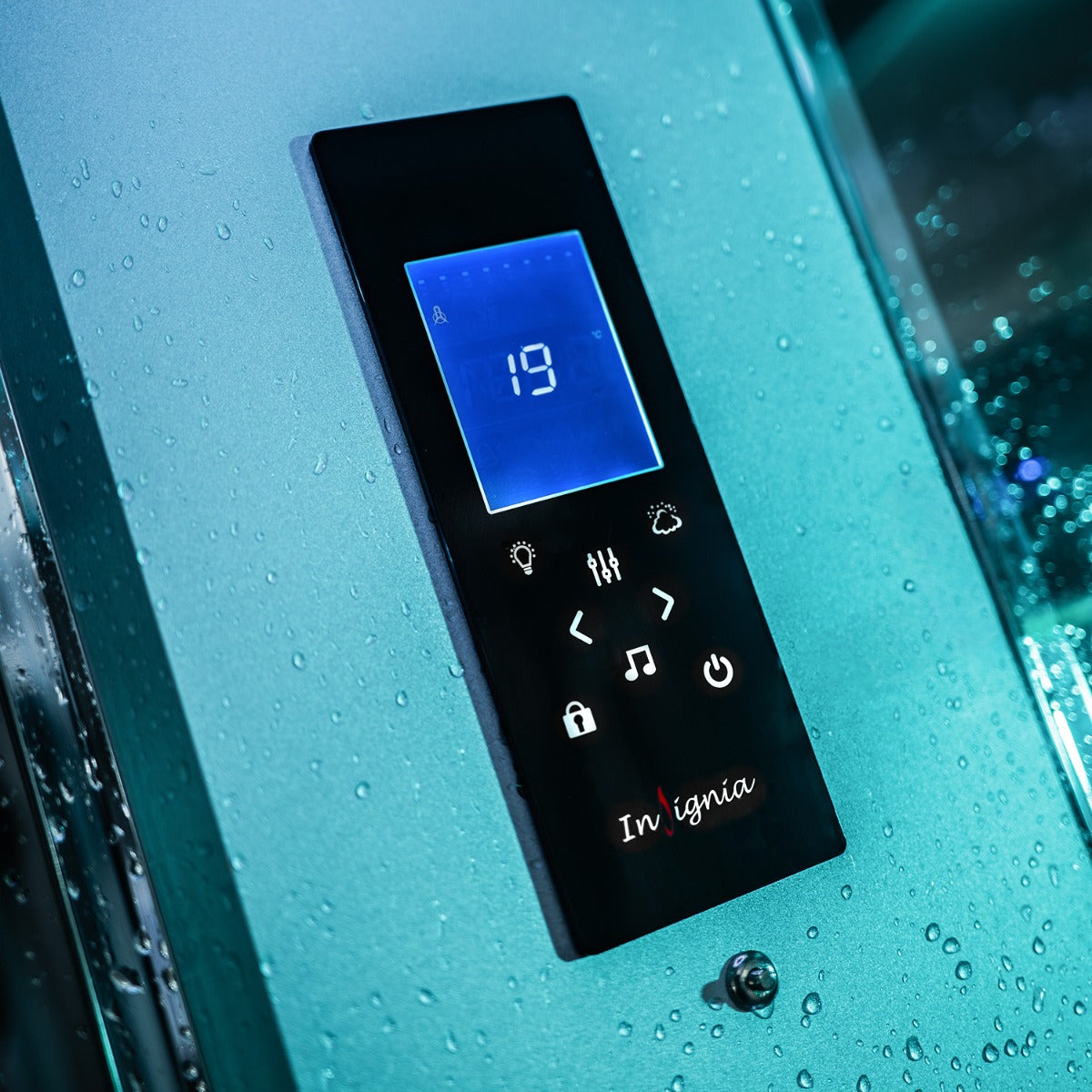

'M' touch control panel with media connections and FM radio
Bluetooth connectivity from any smart device
Twin speaker system

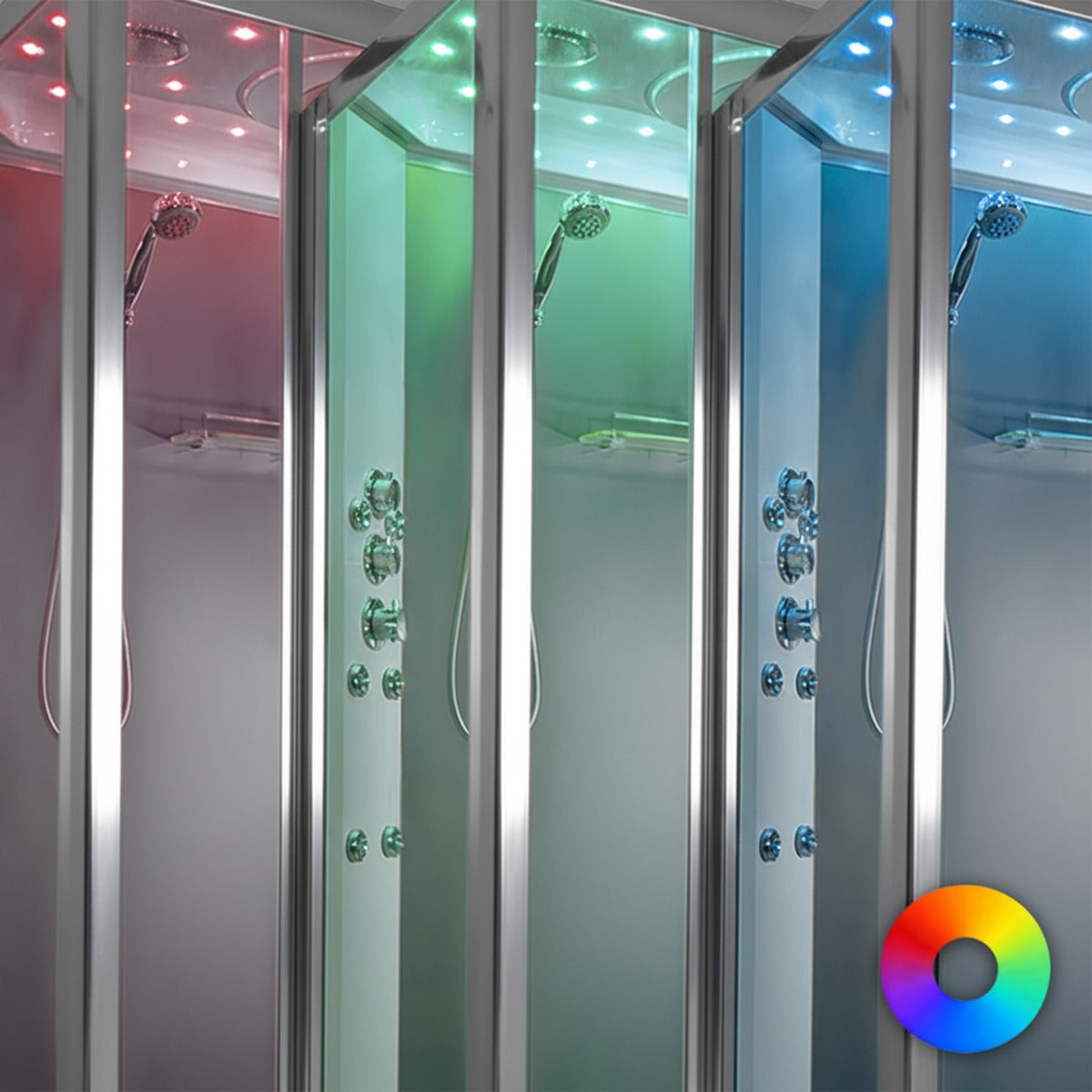

Chromotherapy LED internal lighting — 7 colour spectrum, fixed or scrolling
After-shower ozone disinfection system
Thermostatic control with Vernet technology
Leak-free tray design — no screws, no silicone
Fast-click assembly system
Smooth-glide doors on rollers with magnetic door seals
6mm tempered glass enclosure with toughened glass shelf
Reinforced polymer tray
5-year manufacturer's warranty upon registration
The Leak-Free Difference
No screws through the tray. Glass panels aren't screwed to the tray, so there are no drilled holes for water to find — removing the most common cause of leaks.
No silicone sealing. Panels are secured with a patented molecular-structured gum instead of silicone, so there's nothing to split, discolour or harbour mould over time.
Ready to use immediately. With no sealant to cure, you can use the shower as soon as it's built.
Back Wall Colour

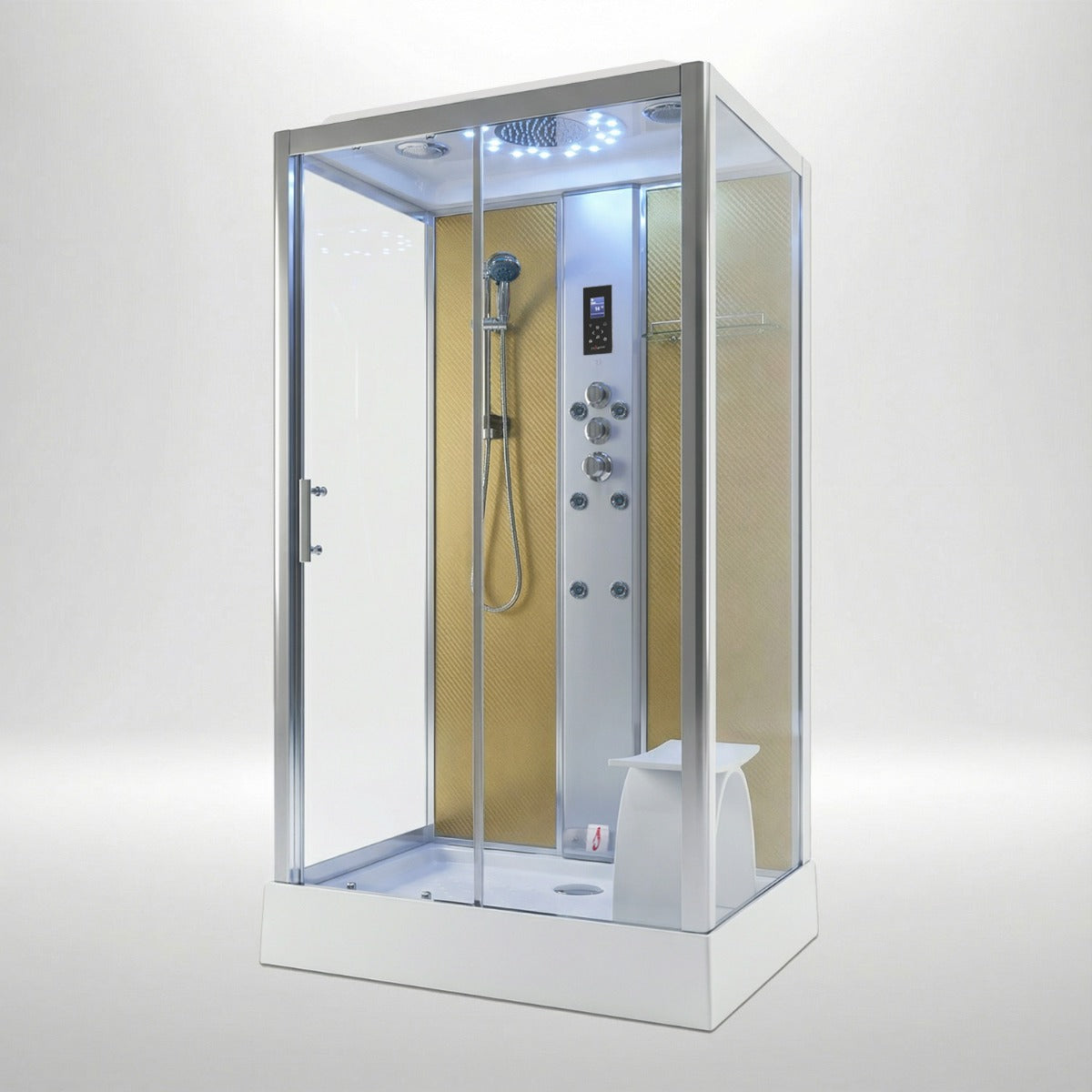

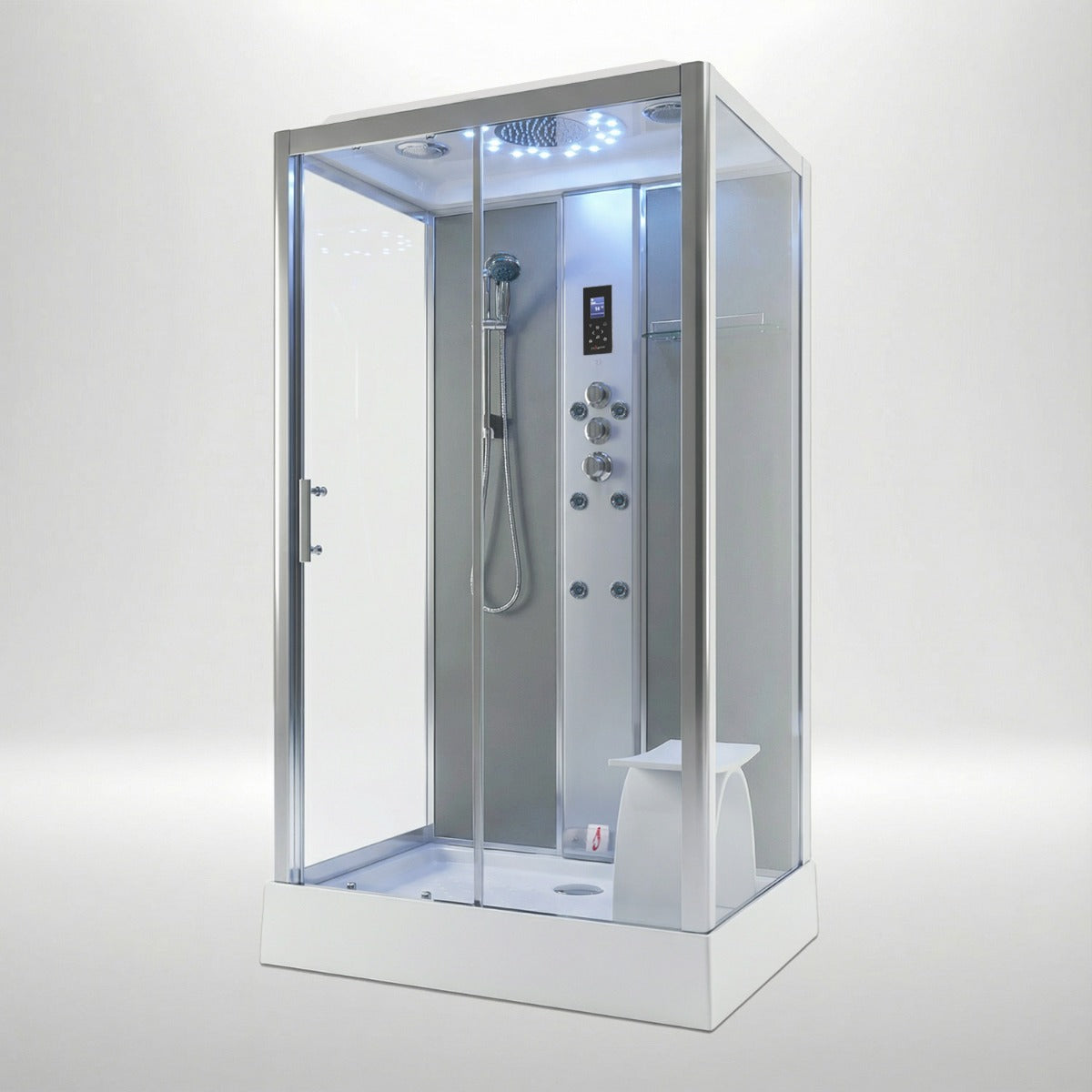

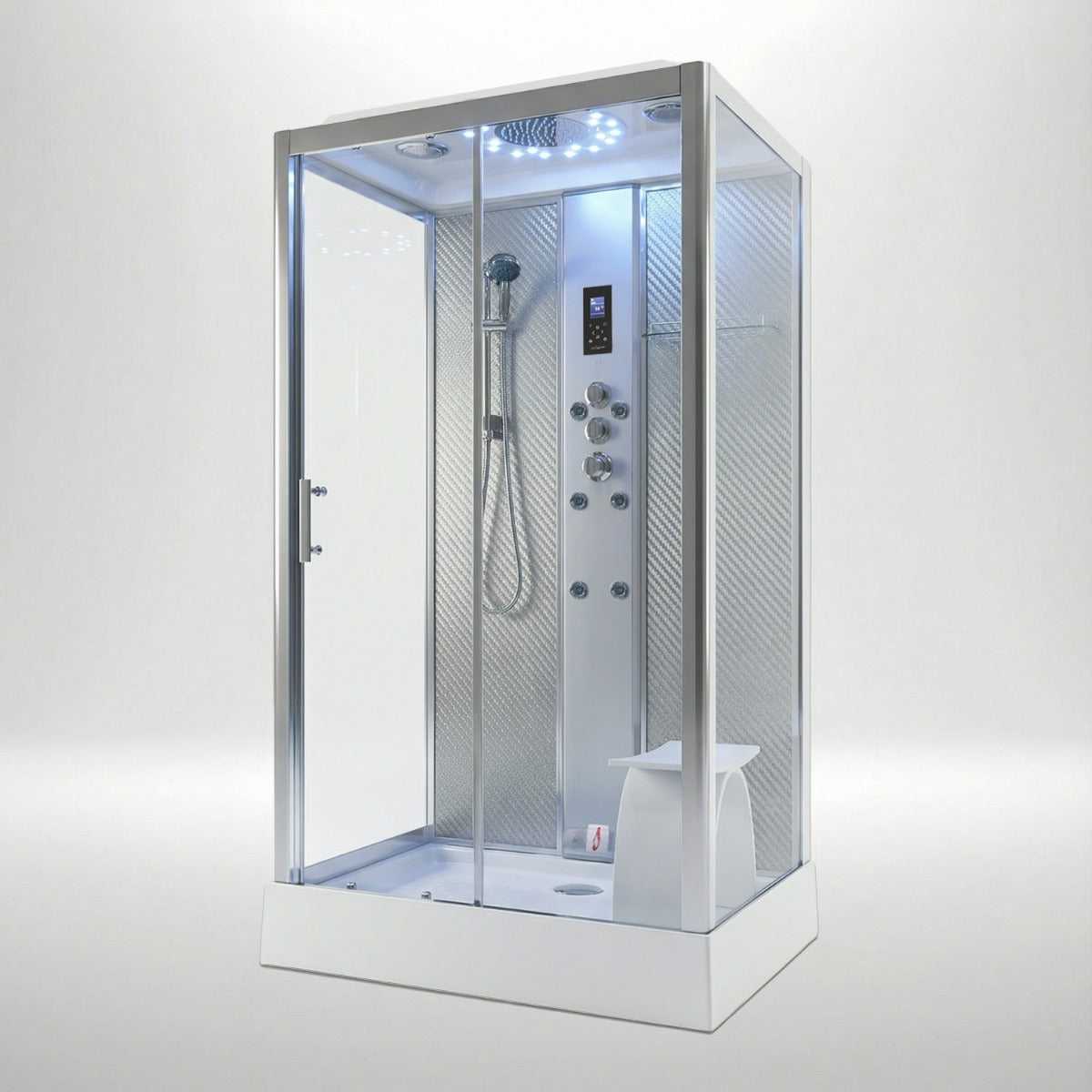

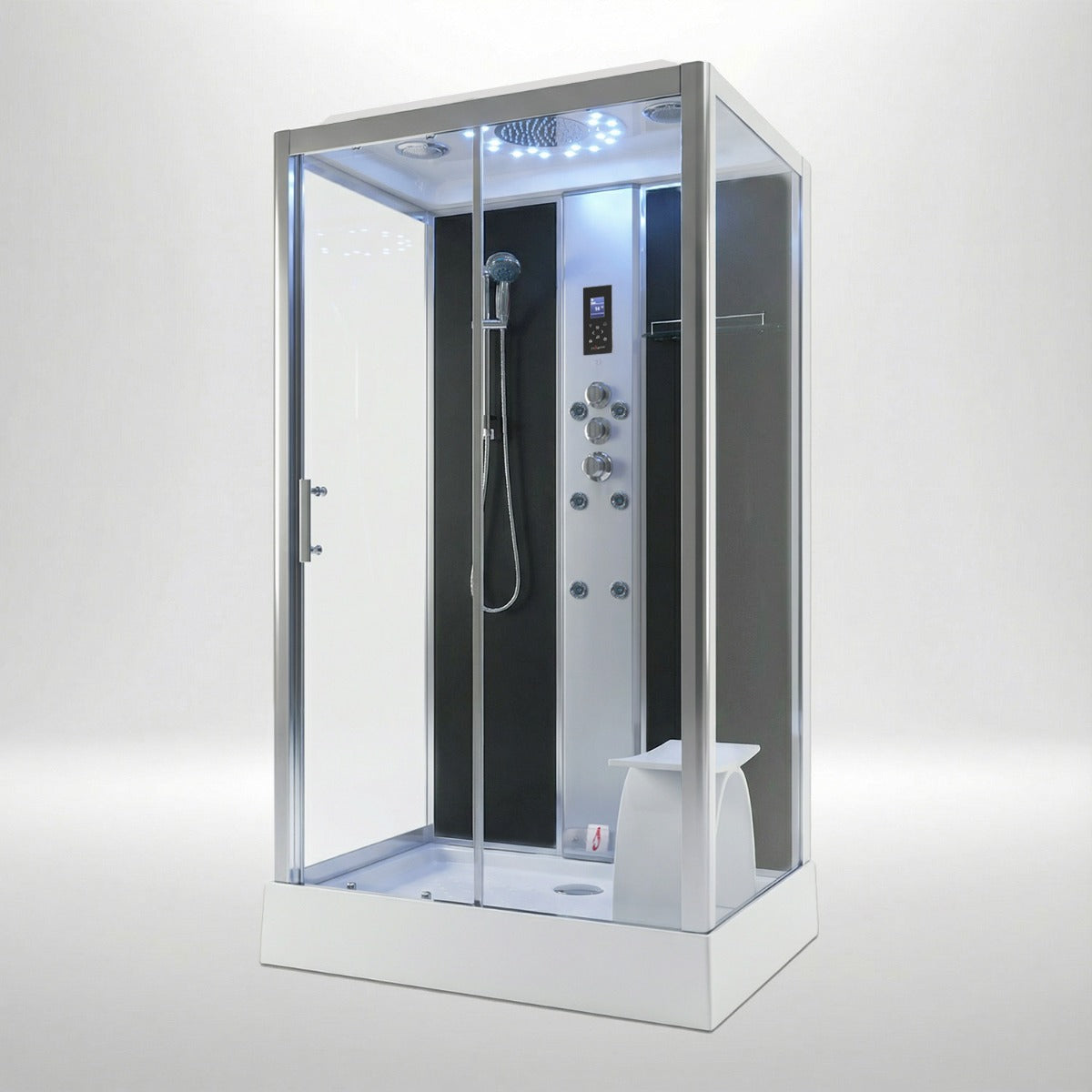

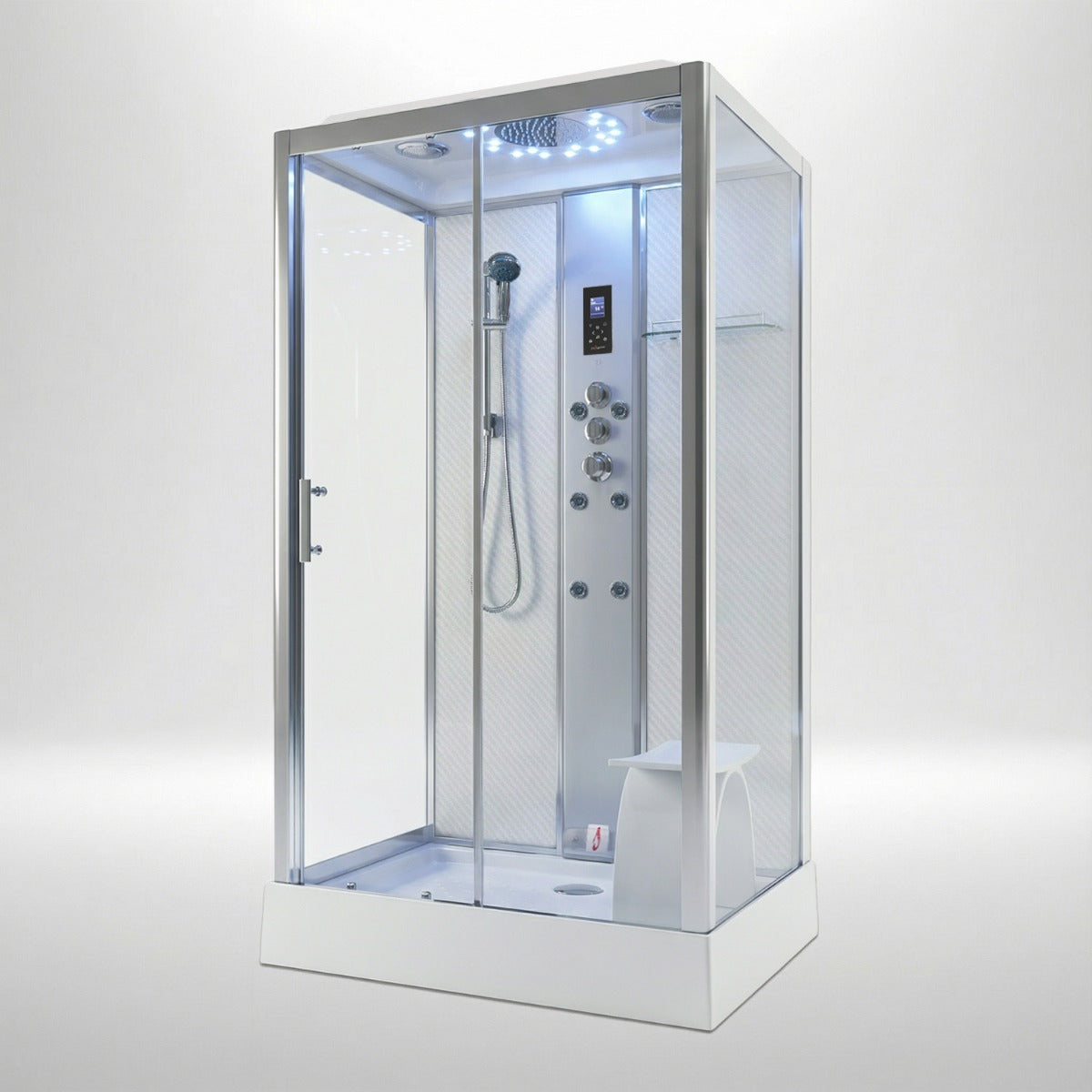

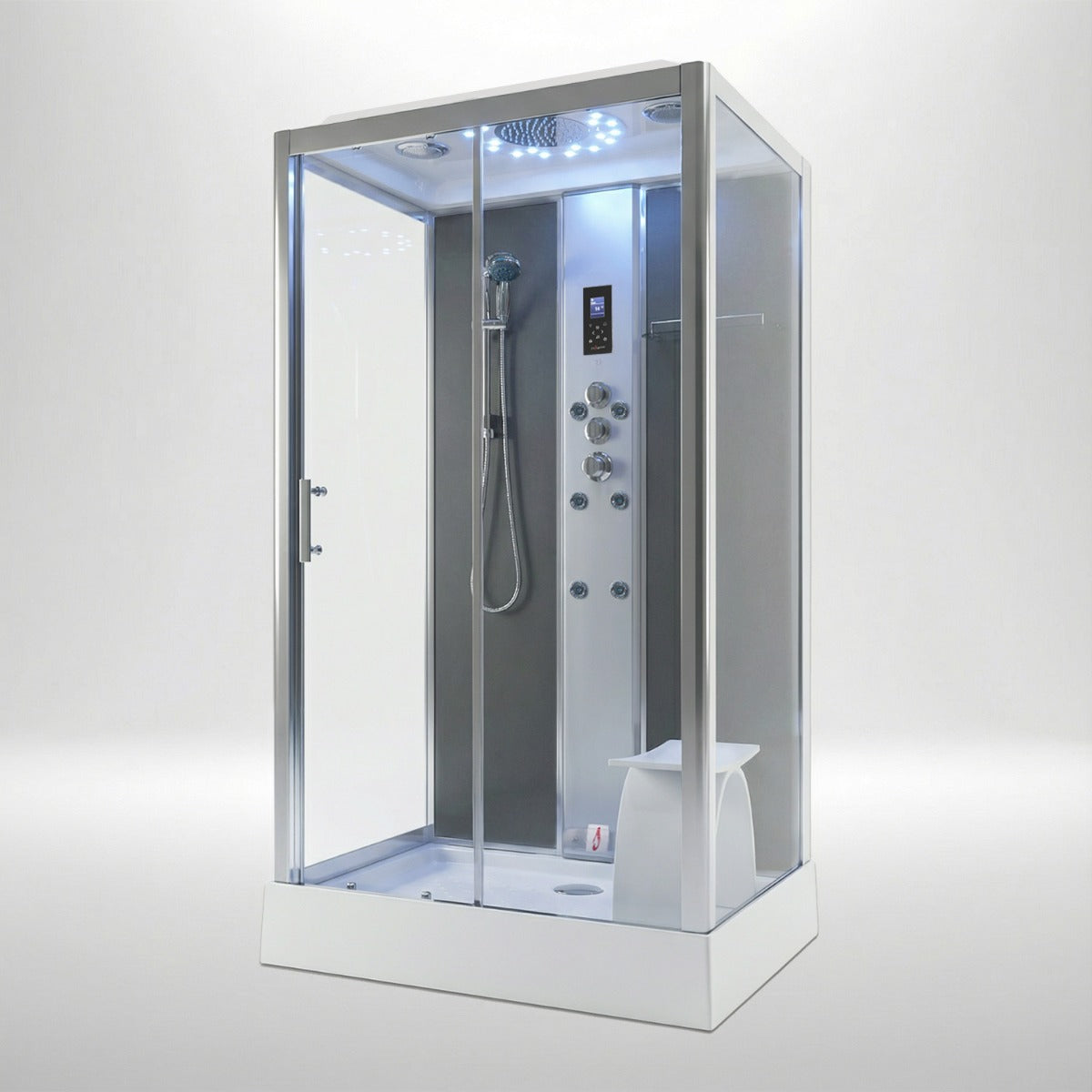

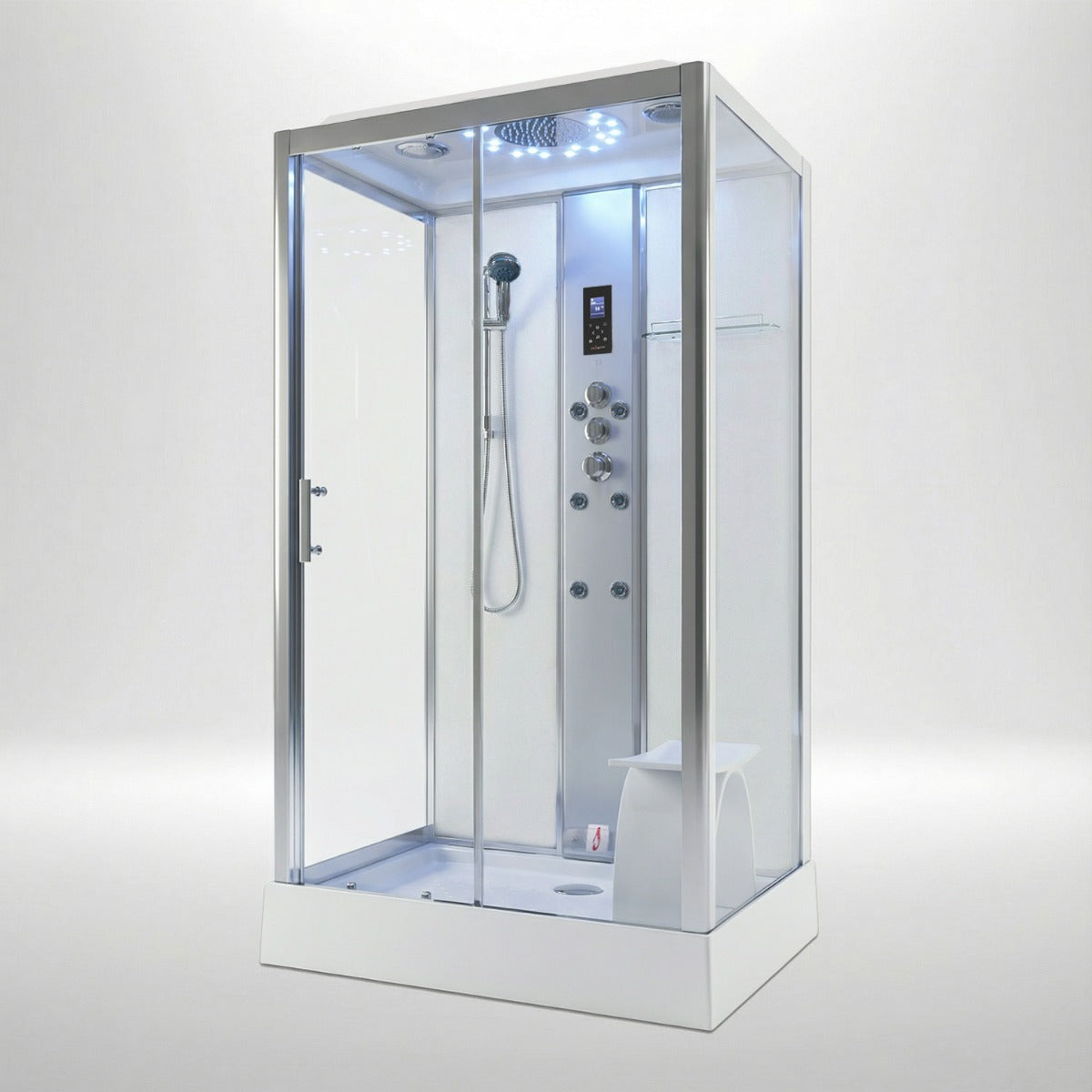

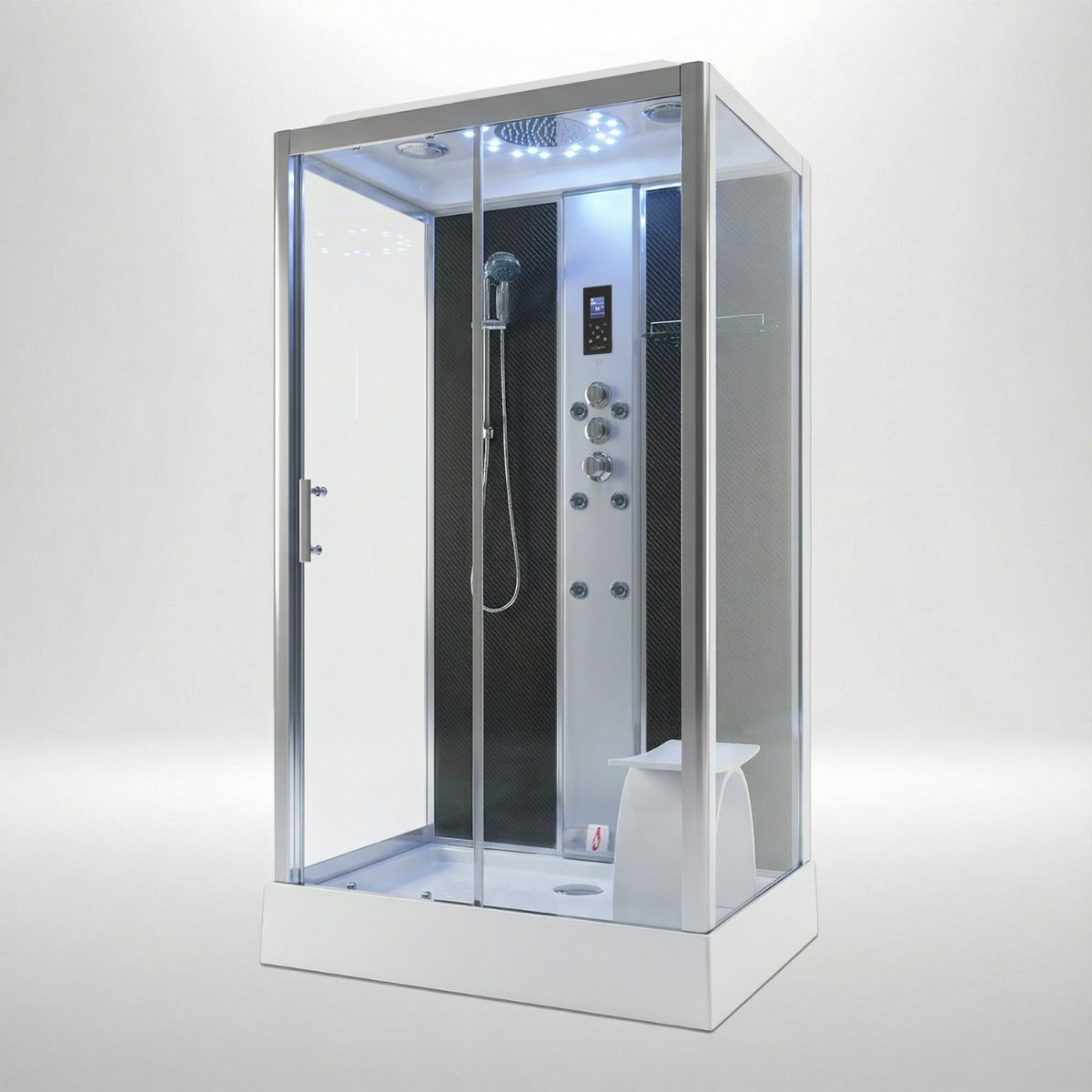

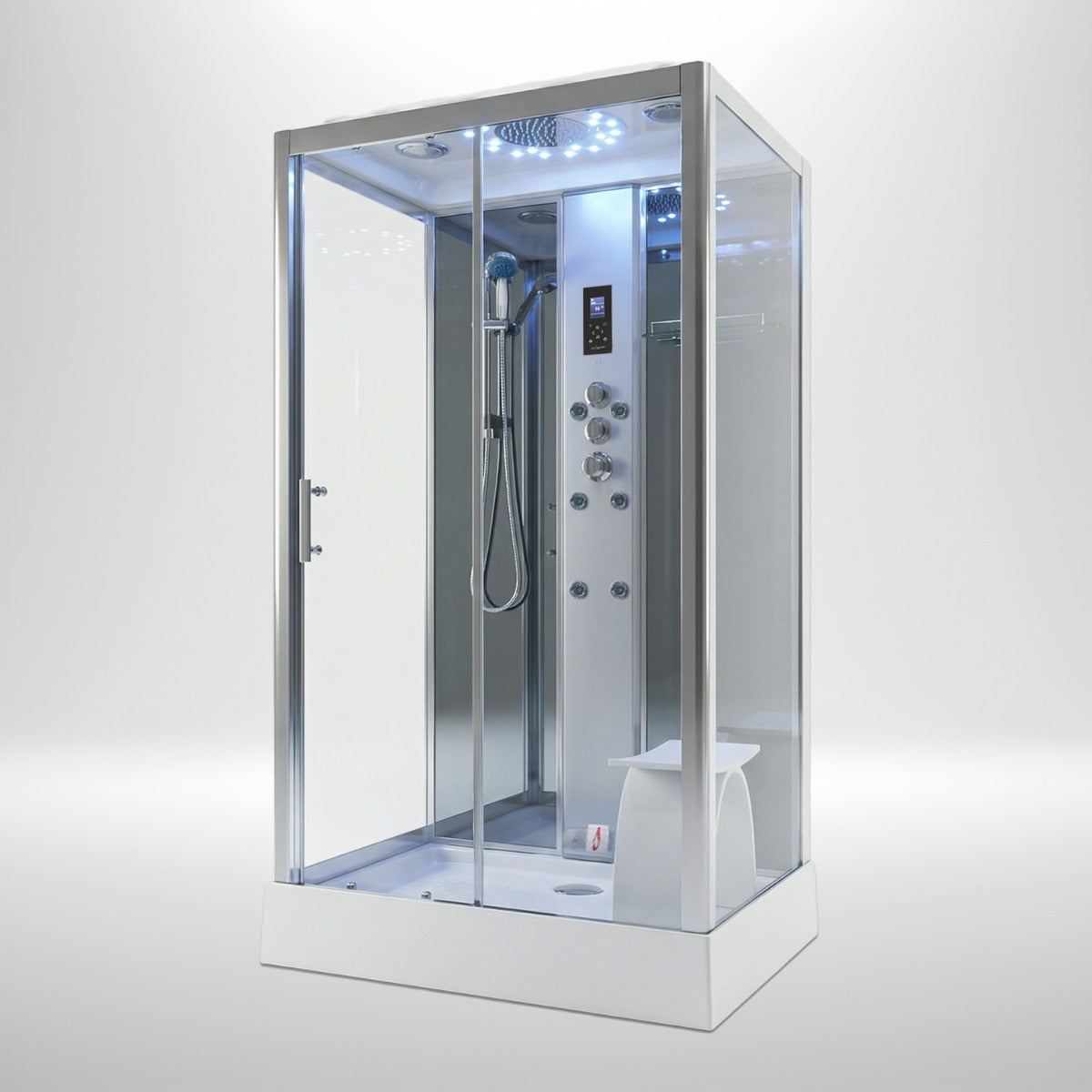

Mirror comes as standard, giving a bright, open feel. Eight further finishes are available — Anthracite, Black, White and Grey in matte, plus Black, White, Gold and Silver in carbon.

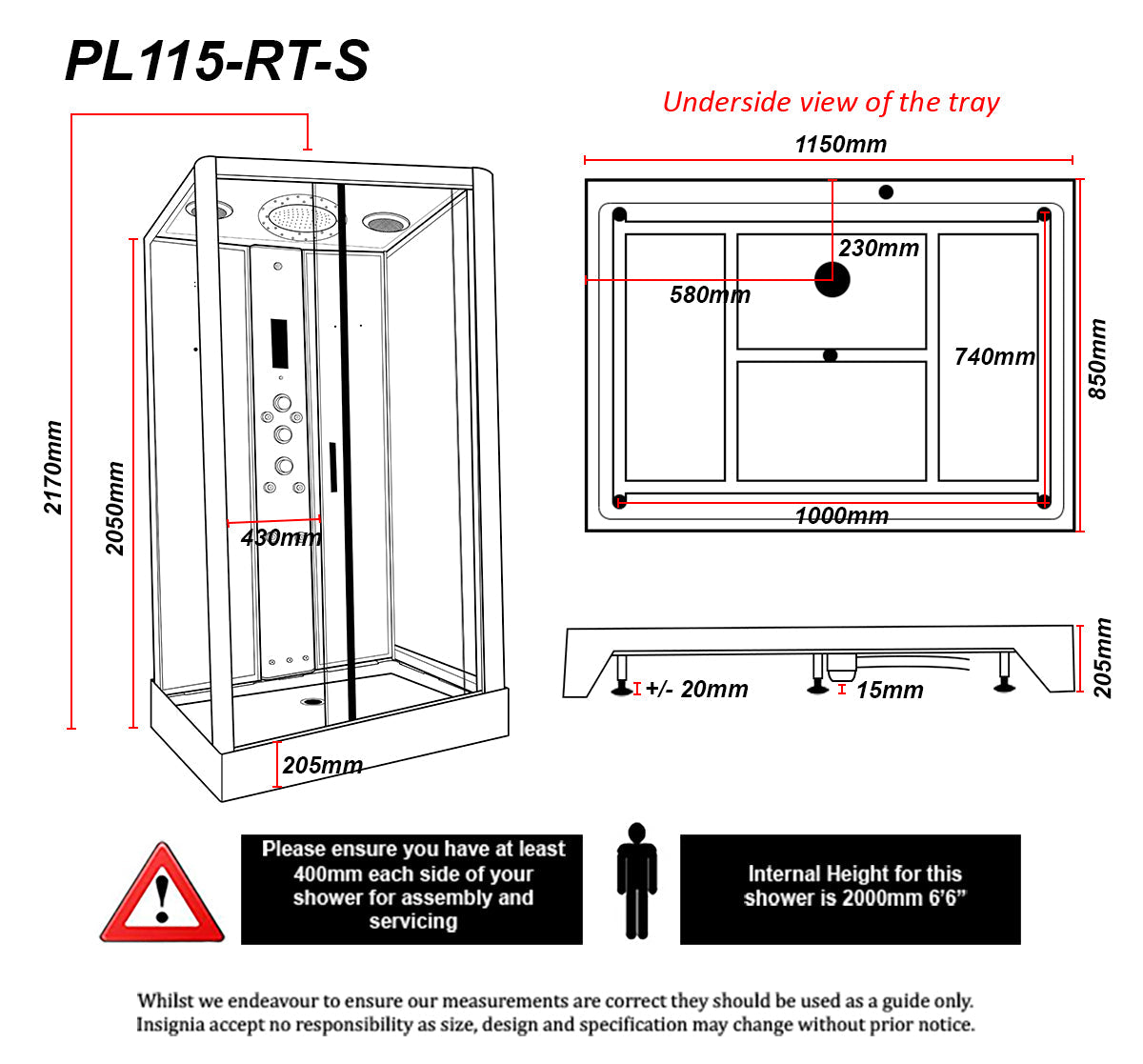

Specifications
Dimensions
1150mm x 850mm (rectangle enclosure)
Frame colour
Chrome
Glass
6mm tempered, clear
Back panel
Mirror as standard; matte and carbon options available
Steam generator
Fast-start 3kW with triple-jet outlet
Water supply
Hot and cold connections required
Water pressure
2.5 BAR minimum — do not exceed 3.4 BAR
Waste
Flexible 1 metre waste hose included
Power supply
13amp plug supplied for control panel and lighting
Certification
CE certified
Weight
Net approx 132kg / gross approx 147kg
Packaging
Typically supplied in 4–5 boxes for easier transport
Installation Video
Delivery & Installation
Delivery: 3 to 5 working days after order confirmation. You'll be notified by email or phone when your order is out for delivery. The cabin arrives in 4–5 manageable boxes.
Installation: Hot and cold water connections (2.5–3.4 BAR) and a 13amp electrical supply for the control panel and lighting must be in place. We recommend installation by a qualified plumber and electrician. The fast-click assembly system needs no drilling into the tray and no silicone, so the cabin can be used straight after it's built.
Warranty: 5 year manufacturer's warranty upon registration.
Returns
At Nuovo Luxury Ltd, your satisfaction is our top priority. Please inspect the packaging on delivery. If you notice any damage, note it when signing and email photos of the damage, the box and the SKU, with a brief description, to info@nuovoluxury.co.uk within 24 hours.
Questions before you buy? Call our friendly team on 0330 1336 617 — we'd love to help.
